External API

With the first chapter of this guide (Hardcoded Data), we learned how to set up a simple in-memory data store. To make our small application more realistic, we will now connect to an external API to fetch some data asynchronously.

Project Structure

After setting up the hardcoded data project correctly, you should see a project structure similar to this:

my-pylon/
├── .pylon/
├── src/
│   ├── bookingStore.ts
│   ├── index.ts
├── package.json
├── tsconfig.json

The bookingStore.ts file is where we implemented our in-memory data store:

interface Booking {
  id: number
  firstname: string
  lastname: string
  totalPrice?: number
  depositpaid: boolean
  bookingdates: {
    checkin: string
    checkout: string
  }
  additionalneeds?: string
}

class BookingStore {
  private bookings: Booking[] = [
    {
      id: 1,
      firstname: 'Sally',
      lastname: 'Brown',
      totalPrice: 111,
      depositpaid: true,
      bookingdates: {
        checkin: '2013-02-23',
        checkout: '2014-10-23'
      },
      additionalneeds: 'Breakfast'
    },
    {
      id: 2,
      firstname: 'John',
      lastname: 'Doe',
      totalPrice: 222,
      depositpaid: false,
      bookingdates: {
        checkin: '2013-02-23',
        checkout: '2014-10-23'
      },
      additionalneeds: 'Breakfast'
    },
    {
      id: 3,
      firstname: 'Jane',
      lastname: 'Smith',
      totalPrice: 333,
      depositpaid: true,
      bookingdates: {
        checkin: '2013-02-23',
        checkout: '2014-10-23'
      },
      additionalneeds: 'Breakfast'
    }
  ]

  constructor() {
    this.getBookings = this.getBookings.bind(this)
    this.getBookingById = this.getBookingById.bind(this)
    this.addBooking = this.addBooking.bind(this)
  }

  getBookings(): Booking[] {
    return this.bookings
  }

  getBookingById(bookingId: number): Booking | null {
    return this.bookings.find(booking => booking.id === bookingId) ?? null
  }

  addBooking(booking: Omit<Booking, 'id'>): Booking {
    const newBooking = {...booking, id: this.bookings.length + 1}
    this.bookings.push(newBooking)
    return newBooking
  }
}

const bookingStore = new BookingStore()

export default bookingStore

Within the index.ts file, we introduced the class methods to our Pylon service:

import {app} from '@getcronit/pylon'
import bookingStore from './lib/bookingStore'

export const graphql = {
  Query: {
    bookings: bookingStore.getBookings,
    booking: bookingStore.getBookingById
  },
  Mutation: {
    addBooking: bookingStore.addBooking
  }
}

export default app

Fetch Data from an External API

For this guide, we will use the Restful-Booker (opens in a new tab) API created by Mark Winteringham (opens in a new tab) to fetch booking data. For the simplicity of this guide, we will only fetch the bookings and not create new ones. Therefore, we're getting rid of all of the methods in the BookingStore class, the data, and remove our introduction of the methods in the index.ts file.

The API provides two endpoints to fetch bookings: GET /booking and GET /booking/{id}. We will implement respective methods in the BookingStore class to fetch all bookings and a single booking by its ID. Our interface can stay the same since the API luckily provides the same data structure as our in-memory data store.

Fetch bookings

Before we start implementing the method, we should make us familiar with the API endpoint GET /booking:

Parameter

Response

All parameters above are optional, and the API will return all bookings if no parameter is set. For now, we will only fetch all bookings without any parameters. We should keep in mind that the endpoint only returns the booking IDs, so we need to fetch each booking individually if we want to display more details.

Thanks to Pylon's behavior, we have no restrictions on how we get the data from any source. No matter if it's a REST API, a database, or a file, we can implement it the way we like it with any library we prefer.

For this guide, we will stick to the built-in fetch method to fetch the data from the API. We will request the bookings from the API and simply return the result:

async getBookingIds(): Promise<{ bookingid: number }[]> {
    const response = await fetch('https://restful-booker.herokuapp.com/booking');
    const data = await response.json();
    return data;
}

And that's just it! We have successfully implemented a method that fetches booking IDs from the external API. Introducing the method to our service is as simple as adding it to the Query object in the index.ts file:

import {app} from '@getcronit/pylon'
import bookingStore from './lib/bookingStore'

export const graphql = {
  Query: {
    bookingIds: bookingStore.getBookingIds
  },
  Mutation: {}
}

export default app

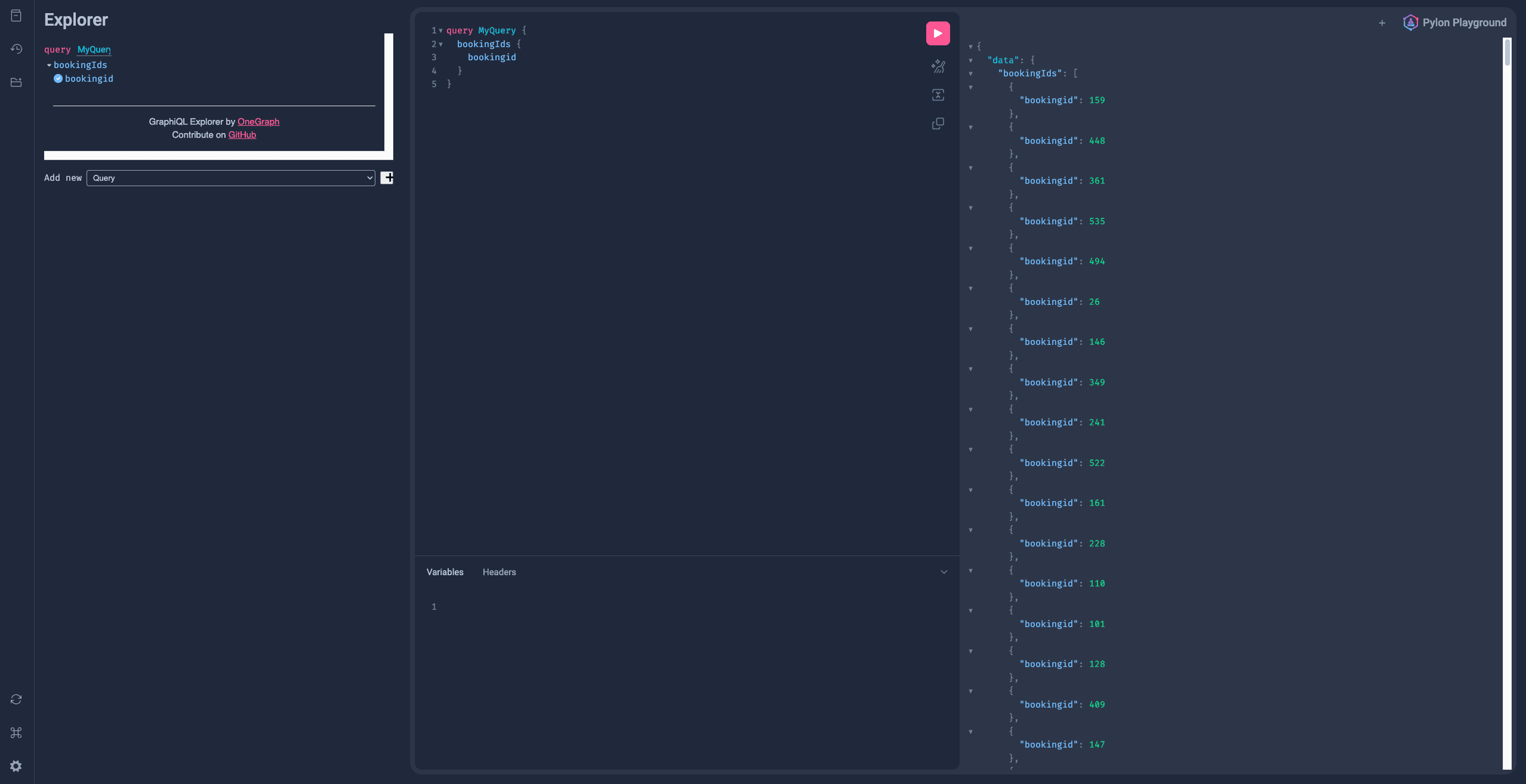

Now we can test the new query in the built-in GraphQL playground:

Accept Parameters

The API provides parameters to filter the bookings by firstname, lastname, checkin, and checkout. We can implement these parameters in our method to fetch the bookings. We will extend the method to accept these parameters and add them to the query string:

async getBookingIds(firstname?: string, lastname?: string, checkin?: string, checkout?: string): Promise<{ bookingid: number }[] | null> {
    try {
        const url = new URL('https://restful-booker.herokuapp.com/booking');
        if (firstname) url.searchParams.append('firstname', firstname);
        if (lastname) url.searchParams.append('lastname', lastname);
        if (checkin) url.searchParams.append('checkin', checkin);
        if (checkout) url.searchParams.append('checkout', checkout);

        const response = await fetch(url.toString());
        const data = await response.json();
        return data;
    } catch {
        return null;
    }
}

And it's as simple as that! We have successfully implemented a method that fetches booking IDs from the external API with optional parameters. We don't need to change anything in the index.ts file since we already introduced the method to our service and Pylon automatically handles the parameters for us.

Of course, in a real-world scenario, we would add some error handling to the method and checking the parameters for valid values. But for the simplicity of this guide, we will keep it as it is.

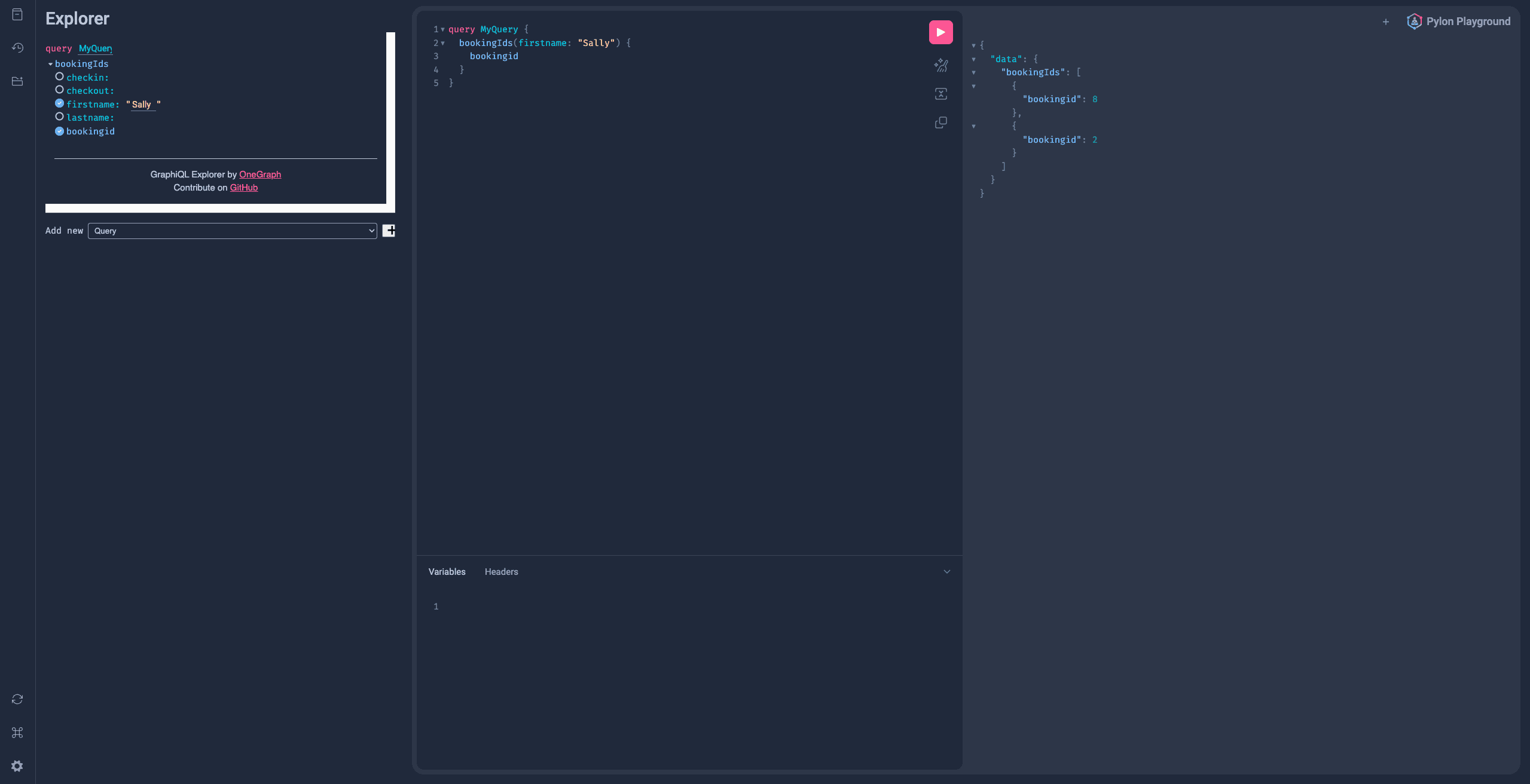

If we test the new query in the built-in GraphQL playground, we see that we can now filter the bookings by firstname, lastname, checkin, and checkout. For example, we can fetch all bookings with the firstname Sally:

Fetch a booking by ID

Implementing this method is as easy as the previous one. The endpoint GET /booking/{id} expects a booking ID and returns the booking with the following structure:

We will implement the method to fetch a booking by its ID and add it to the Query object in the index.ts file:

async getBookingById(bookingId: number): Promise<Booking> {
    const url = `https://restful-booker.herokuapp.com/booking/${bookingId}`;

    const response = await fetch(url);
    const data = await response.json();
    return data;
}

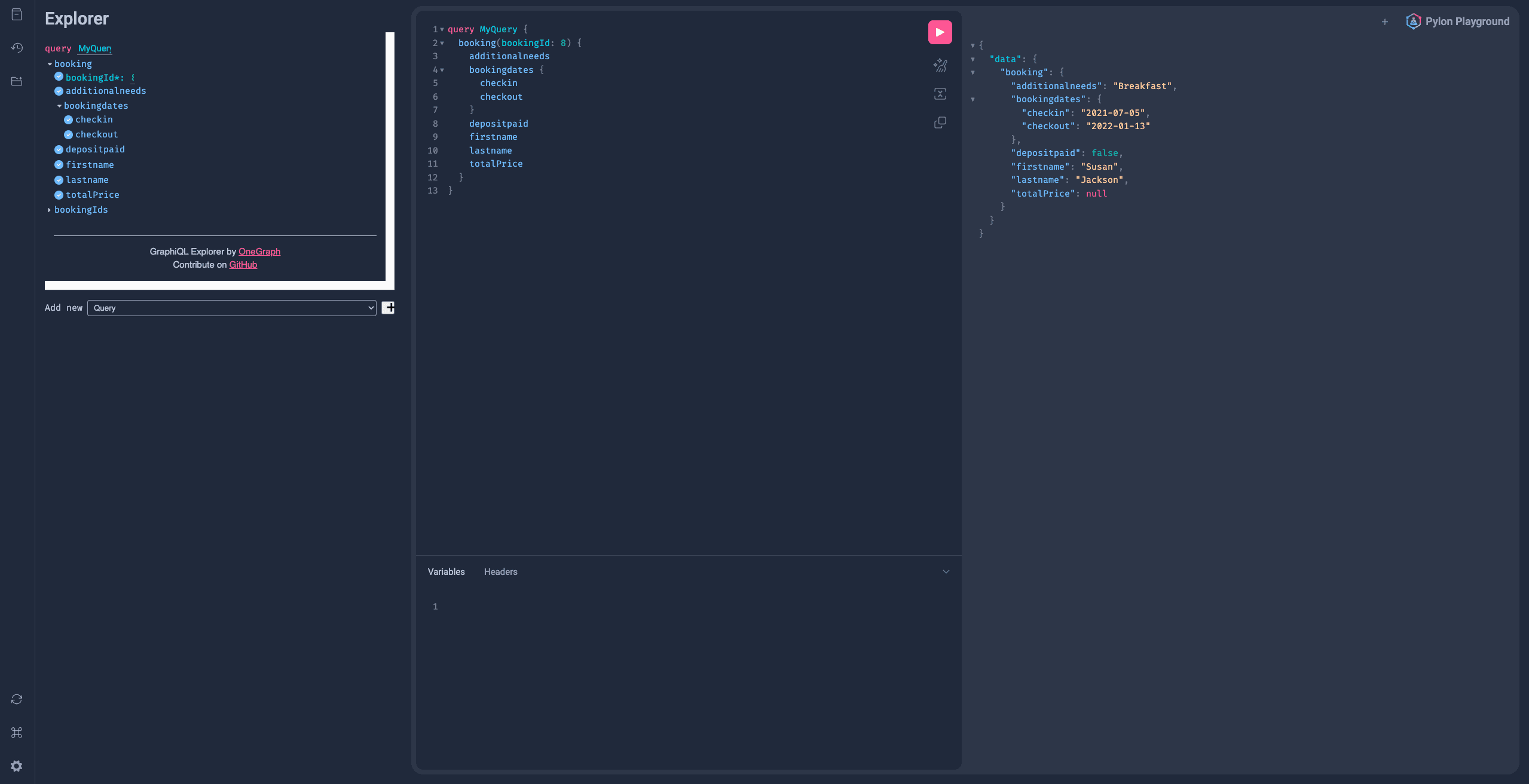

After adding the method to the Query object in the index.ts file, we can test the new query in the built-in GraphQL playground:

And within a few lines of code, we have successfully implemented a method that fetches a booking by its ID from the external API.

Conclusion

This guide showed how easy it is to fetch data from an external API with Pylon. Pylon does not mind how we fetch the data and what we are doing with it. All it requires from us is type safety. No matter how messed up our code is, Pylon will always provide a clean and easy-to-use and realiable GraphQL interface for our clients.

In the final chapter of this guide, we will take a look at how we can use Prisma to fetch and modify data in our service.
